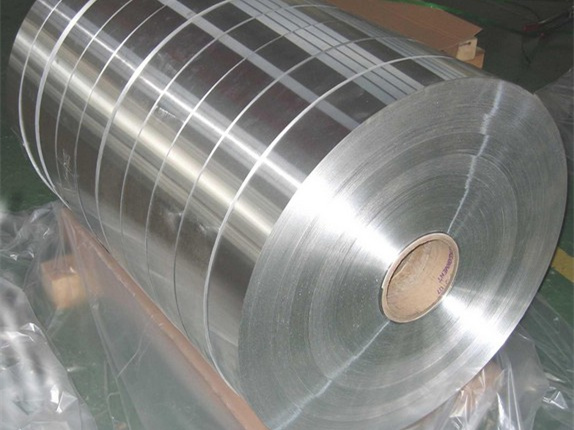

High Quality 16 inch Aluminum Strip

Thin Aluminum Strip For Decoration
Alloy Series:5005
Temper: O,H12，H14，H16，H18
Thickness: 0.2-4.5mm, tolerance: +/-0.02mm
Width: 50-1560mm, tolerance:+/-1mm
Surface: Mill finish，Painted, Coated, Embossed,Brushed

Availability:

Quantity:



Inquire Add to Basket

Basic Information
Product Attributes
Supply Ability
Application
Packing

High Quality 16 inch Aluminum Strip alloy 5052 Mg gives this alloy its enhanced corrosion resistance, workability, strength, and weldability. Typical uses include aircraft fuel tanks, electronic mounting plates and panels, fan blades, refrigeration liners, storm shutters, and utensils.

16 inch means 16inch width, width is about 405mm

High Quality 16 inch Aluminum Strip High Quality 16 inch Aluminum Strip 5052 Aluminum Strip

Product	High Quality 16 inch Aluminum Strip				Contract No.				Lot No.
Dimension (mm)	0.2-4.5				Alloy		5052		Piece Count
Techuique Standard					GB/T3190--1996/EN				Weight(kg)
Chemical Composition(%)
	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Others		Al
Standard	0.25	0.4	0.1	0.1	2.2-2.8-	0.15-0.35	-	0.1	-	0.15		Remain
Notice:Aluminum foil not contains Pb、As and other Virose elements
Mechanical Property
Temper	Thickness		Tensile Strength（Mpa）			Strength(Mpa)			Elongation%		Cup Bulge
O	0.8-1.3		175-215			65			18		-
	1.31-2.9								19		-
	2.91-4.5								20		-
H12,H22，H32	0.2-0.3		215-265			-			3		-
	0.31-0.5					-			4		-
	0.51-0.8					-			5		-
	0.81-1.3					155			5		-
	1.31-2.9								7		-
	2.91-4.5								9		-
H14,H24,H34	0.2-0.5		235-285			-			3		-
	0.51-0.8					-			4		-
	0.81-1.3					175			4		-
	1.31-2.9								6		-
	2.91-4.5								7		-
H16,H26,H36	0.2-0.8		255-305			-			3		-
	0.81-4.0					205			4		-
H18	0.2-0.8		275			-			3		-
	0.81-3.0					225			4		-
H19	0.2-0.5		285			-			1		-
