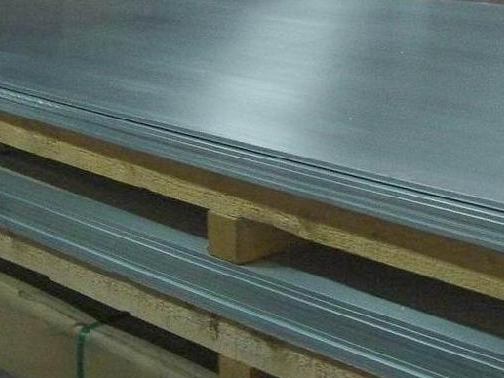

Flexible Flat Aluminum Sheet

Flexible Flat Aluminum Sheet
Alloy Series:8011
Temper: 0, H22
Thickness: 0.2-1.5mm, tolerance: +/-0.02mm
Width: 30-250mm, tolerance:+/-1mm
Length: 1000-3000mm, tolerance:+/-1mm
Surface: Mill finish, Painted, Coated, Embossed"

Availability:
Quantity:
The 8011 aluminum is mixed with different elements to form an alloy. This alloy is known for its strong properties and ability to resist corrosion. It is primarily made up of aluminum, iron, and silicon, but the addition of more than 1% of other elements enhances its properties. When compared to the 1000 series aluminum alloy, 8011 generally has higher strength, increased flexibility, a more consistent chemical composition, and improved thermal stability.



Product
Contract No.
Lot No.
Dimension (mm) 0.2-1.5 Alloy 8011 Piece Count
Techuique Standard GB/T3190--1996/EN Weight(kg)
Chemical Composition(%)

Si Fe Cu Mn Mg Cr Ni Zn Ti Others Al
Standard 0.4~0.8 0.5~1.0 0.1 0.1 0.1 0.1 - 0.1 - 0.15 Remain
Notice:Aluminum foil not contains Pb、As and other Virose elements
Mechanical Property
Temper Thickness Tensile Strength(Mpa) Strength(Mpa) Elongation%
(50mm)
Cup Bulge
O 0.2-1.5 100-120 60 20 -
H22 0.2-1.5 105-140 - 20 -


Productivity: 1200 tons per month             Transportation: Ocean,Land

Place of Origin: China                                Supply Ability: 1050 tons per month

Certificate: ISO9001                                   HS Code: 76061199

Payment Type: L/C,T/T                              In co term: FOB,CFR,CIF,EXW



General sheet metal work
Fuel lines and tanks
Streetlights
Appliances
Rivets and wire
Flooring panel


Packing: Strong seaworthy wooden pallet or customized

Loading Port: Shanghai,Ningbo,Xiamen,Qingdao
