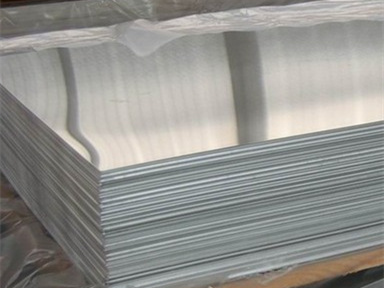

Flexible 4x8 Aluminum Sheet

Flexible 4x8 Aluminum Sheet
Alloy Series:5083
Temper:O,h321,h116
Thickness: 0.6-50mm, tolerance: +/-0.02mm
Width: 1220mm, tolerance:+/-1mm
Length: 2440mm, tolerance:+/-1mm
Surface: Painted, Coated, Embossed,Mill finish,Bright finish，anodizing

Availability:

Quantity:


Inquire Add to Basket

Product Description
Product Attributes
Supply Ability
Application
Packing

4x8 Aluminum Sheet 5083 is known for its excellent performance in extreme environments. Corrosion resistance of seawater and industrial chemical environment.Alloy 5083 also maintained excellent strength after welding. It has the highest strength of non-heat treated alloys, but is not recommended for use at temperatures exceeding 65°C.

Flexible aluminum plain sheet 4x8 Aluminum sheet Aluminum Sheet

Product					Contract No.				Lot No.
Dimension (mm)	0.5-150				Alloy		5083		Piece Count
Techuique Standard					GB/T3190--1996/EN				Weight(kg)
Chemical Composition(%)
	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Others		Al
Standard	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	-	0.25	0.15	0.15		Remain
Notice:Aluminum foil not contains Pb、As and other Virose elements
Mechanical Property
Temper	Thickness		Tensile Strength（Mpa）			Strength(Mpa)			Elongation%		Cup Bulge
									5D	50mm
O	0.5-4.5		275-350			125-200			-	16	-
H-112	4.51-6.5		275			125			-	11	-
	6.51-12.5		275			125			-	12	-
	12.5-40.0		275			125			10		-
	40.1-50.0		270			115			10		-
F	50.1-150		-			-			-		-

Product					Contract No.				Lot No.
Dimension (mm)	0.5-150				Alloy		5083		Piece Count
Techuique Standard					GB/T3190--1996/EN				Weight(kg)
Chemical Composition(%)
	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Others		Al
Standard	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	-	0.25	0.15	0.15		Remain
Notice:Aluminum foil not contains Pb、As and other Virose elements
Mechanical Property
Temper	Thickness		Tensile Strength（Mpa）			Strength(Mpa)			Elongation%		Cup Bulge
									5D	50mm
O	0.5-4.5		275-350			125-200			-	16	-
H-112	4.51-6.5		275			125			-	11	-
	6.51-12.5		275			125			-	12	-
	12.5-40.0		275			125			10		-
	40.1-50.0		270			115			10		-
F	50.1-150		-			-			-		-
