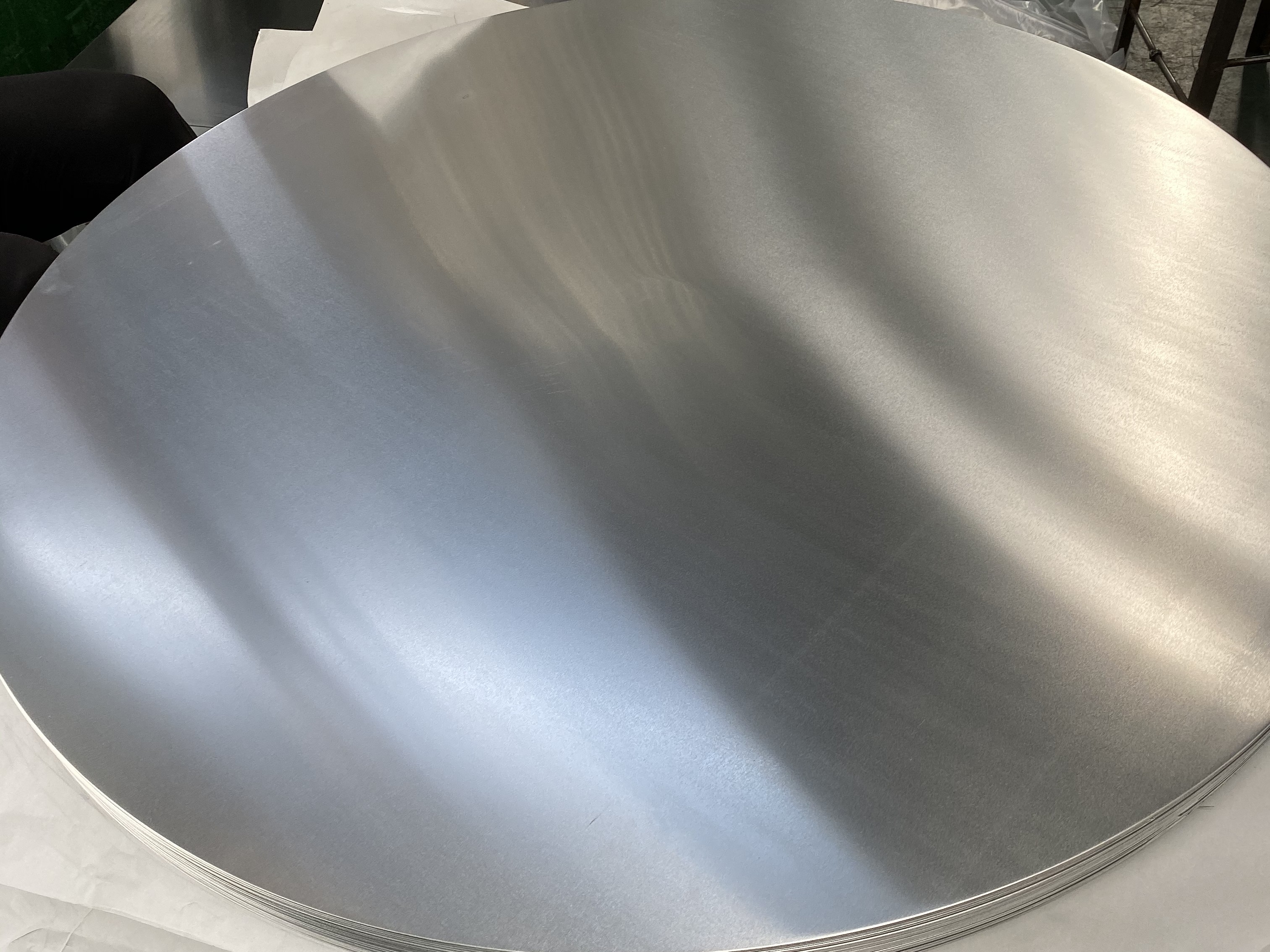

3003 Alloy Aluminum Circle is part of the 3000 Series aluminium circle.
Its performance is better than 1050 aluminum coil plate.
In addition to excellent forming ability, it has elongated lettuce with deep drawing process, large grain size, smooth surface and good reflectivity.
Its applications are similar to those of the 1050, but proved to be higher end :1) advanced cookware (late process: anodizing, enamel painting, deep drawing, etc.); Non-stick pot; Lettuce pressure cooker; 2) Lamp accessories: lampshade, floor lamp, street lamp; 3) Indicating signs and building materials: traffic signs, curtain walls, ceilings, etc.
3003 Alloy Aluminum Circle is part of the 3000 Series aluminium circle.
Its performance is better than 1050 aluminum coil plate.
In addition to excellent forming ability, it has elongated lettuce with deep drawing process, large grain size, smooth surface and good reflectivity.
Its applications are similar to those of the 1050, but proved to be higher end :1) advanced cookware (late process: anodizing, enamel painting, deep drawing, etc.); Non-stick pot; Lettuce pressure cooker; 2) Lamp accessories: lampshade, floor lamp, street lamp; 3) Indicating signs and building materials: traffic signs, curtain walls, ceilings, etc.
Product | Contract No. | Lot No. | ||||||||||
Dimension (mm) | 0.2-80 | Alloy | 3003 | Piece Count | ||||||||
Techuique Standard | GB/T3190--1996/EN | Weight(kg) | ||||||||||
Chemical Composition(%) | ||||||||||||
Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Others | Al | ||
Standard | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.1 | - | 0.15 | Remain | |
Notice:Aluminum foil not contains Pb、As and other Virose elements | ||||||||||||
Mechanical Property | ||||||||||||
Temper | Thickness | Tensile Strength(Mpa) | Strength(Mpa) | Elongation% | Cup Bulge | |||||||
H14,H24 | 0.2-0.5 | 140-180 | 115 | 1 | - | |||||||
0.51-0.8 | 2 | - | ||||||||||
0.81-1.3 | 3 | - | ||||||||||
1.31-2.9 | 5 | - | ||||||||||
2.91-4.5 | 5 | - | ||||||||||
H16,H26 | 0.2-0.5 | 165-205 | 145 | 1 | - | |||||||
0.51-0.8 | 2 | - | ||||||||||
0.81-1.3 | 3 | - | ||||||||||
1.31-4.5 | 4 | - | ||||||||||
H18 | 0.2-0.5 | 185 | 165 | 1 | - | |||||||
0.51-0.8 | 2 | - | ||||||||||
0.81-1.3 | 3 | - | ||||||||||
1.31-4.5 | 4 | - | ||||||||||
H112 | 4.51-12.5 | 115 | 70 | - | - | |||||||
12.51-50.0 | 105 | 40 | 12 | - | ||||||||
50.1-80.0 | 100 | 40 | 18 | - |
Product | Contract No. | Lot No. | ||||||||||
Dimension (mm) | 0.2-80 | Alloy | 3003 | Piece Count | ||||||||
Techuique Standard | GB/T3190--1996/EN | Weight(kg) | ||||||||||
Chemical Composition(%) | ||||||||||||
Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Others | Al | ||
Standard | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.1 | - | 0.15 | Remain | |
Notice:Aluminum foil not contains Pb、As and other Virose elements | ||||||||||||
Mechanical Property | ||||||||||||
Temper | Thickness | Tensile Strength(Mpa) | Strength(Mpa) | Elongation% | Cup Bulge | |||||||
H14,H24 | 0.2-0.5 | 140-180 | 115 | 1 | - | |||||||
0.51-0.8 | 2 | - | ||||||||||
0.81-1.3 | 3 | - | ||||||||||
1.31-2.9 | 5 | - | ||||||||||
2.91-4.5 | 5 | - | ||||||||||
H16,H26 | 0.2-0.5 | 165-205 | 145 | 1 | - | |||||||
0.51-0.8 | 2 | - | ||||||||||
0.81-1.3 | 3 | - | ||||||||||
1.31-4.5 | 4 | - | ||||||||||
H18 | 0.2-0.5 | 185 | 165 | 1 | - | |||||||
0.51-0.8 | 2 | - | ||||||||||
0.81-1.3 | 3 | - | ||||||||||
1.31-4.5 | 4 | - | ||||||||||
H112 | 4.51-12.5 | 115 | 70 | - | - | |||||||
12.51-50.0 | 105 | 40 | 12 | - | ||||||||
50.1-80.0 | 100 | 40 | 18 | - |
Productivity: 840 tons per month Transportation: Ocean,Land
Place of Origin: China Supply Ability: 536 tons per month
Certificate: ISO9001 HS Code: 76061199
Payment Type: L/C,T/T In co term: FOB,CFR,CIF,EXW
Productivity: 840 tons per month Transportation: Ocean,Land
Place of Origin: China Supply Ability: 536 tons per month
Certificate: ISO9001 HS Code: 76061199
Payment Type: L/C,T/T In co term: FOB,CFR,CIF,EXW
The applications that are demanding this 3003 Alloy Aluminum Circle is heat exchangers , condenser, petrochemical, special chemical, pharmaceutical, chemical, pulp and paper, food processing, power generation, automobile and so on.
The applications that are demanding this 3003 Alloy Aluminum Circle is heat exchangers , condenser, petrochemical, special chemical, pharmaceutical, chemical, pulp and paper, food processing, power generation, automobile and so on.
Packing: Strong seaworthy wooden pallet or customized
Loading Port: Shanghai,Ningbo,Xiamen,Qingdao
Packing: Strong seaworthy wooden pallet or customized
Loading Port: Shanghai,Ningbo,Xiamen,Qingdao
