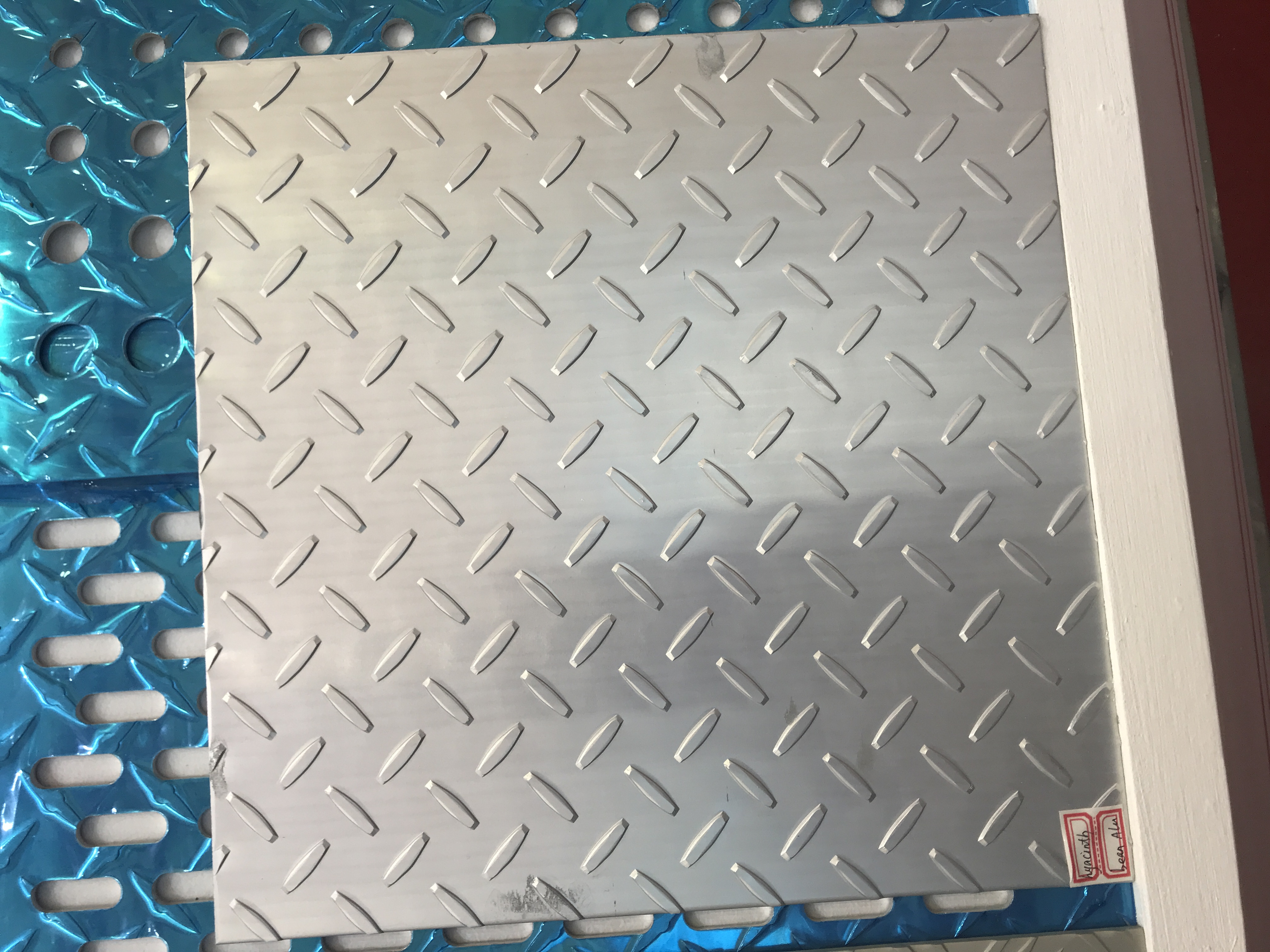

Anti Slip Thin Aluminum Sheet

Anti Slip Thin Aluminum Sheet
Temper: 1100,1060,1050,1200
Thickness:0.8-50.0mm thickness, tolerance: +/-0.02mm
Width: 100-1800mm with width tolerance:+/-1mm
Surface: mill finish, anodized, polished, or customized

Availability:

Quantity:


Inquire Add to Basket

Temper: 1100,1060,1050,1200

Thickness:0.8-50.0mm thickness, tolerance: +/-0.02mm

Width: 100-1800mm with width tolerance:+/-1mm

Surface: mill finish, anodized, polished, or customized

Anti Slip Aluminum sheet Anti slip aluminum planel Aluminum checked sheet

Jinding Aluminium Group is a large-Scale enterprise integrating R & D ,design , manufacturing and export trade

WHAT WE PROVIDE

ADDRESS

No.199, Xinfeng Road, Nanyuan Street,Yuhang Distric, Hangzhou,China

PHONE

+86-571-85816357
+86-571- 88136061
+86-571-85803137

WHAT WE PROVIDE

Other Products

Copytight @ 2022 Jinding Aluminium Group Support by Leadong. Sitemap. Privacy Policy 青ICP备2022000485号-1

ALLOY	Si	Fe	Cu	Mn	Mg	Zn	Ti	Others		Al
								Single	Total
1100	0.95		0.05-0.2	0.05	/	0.1	/	0.05	0.15	99.00

Alloy	Temper	Thickness	Tensile strength	Elongation
Alloy	Temper	mm	MPa	%
1100	O	＞0.2-0.3	75-110	15
		＞0.3-0.5		17
		＞0.5-1.5		22
		＞1.5-6.0		30
		＞6.0-80.0		28
	H12/H22	＞0.2-0.5	95-125	3
		＞0.5-1.5		5
		＞1.5-6.0		8
	H14/H24	＞0.2-0.3	120-145	1
		＞0.3-0.5		2
		＞0.5-1.5		3
		＞1.5-4.0		5
	H16/H26	＞0.2-0.3	130-165	1
		＞0.3-0.5		2
		＞0.5-1.5		3
		＞1.5-4.0		4
	H18	＞0.2-0.5	≥155	1
		＞0.5-1.5		2
		＞1.5-3.0		4
	H112	＞6.0-12.5	≥90	9
		＞12.5-40.0	≥85	12
		＞40.0-80.0	≥80	18

ALLOY	Si	Fe	Cu	Mn	Mg	Zn	Ti	Others		Al
								Single	Total
1100	0.95		0.05-0.2	0.05	/	0.1	/	0.05	0.15	99.00

Alloy	Temper	Thickness	Tensile strength	Elongation
Alloy	Temper	mm	MPa	%
1100	O	＞0.2-0.3	75-110	15
		＞0.3-0.5		17
		＞0.5-1.5		22
		＞1.5-6.0		30
		＞6.0-80.0		28
	H12/H22	＞0.2-0.5	95-125	3
		＞0.5-1.5		5
		＞1.5-6.0		8
	H14/H24	＞0.2-0.3	120-145	1
		＞0.3-0.5		2
		＞0.5-1.5		3
		＞1.5-4.0		5
	H16/H26	＞0.2-0.3	130-165	1
		＞0.3-0.5		2
		＞0.5-1.5		3
		＞1.5-4.0		4
	H18	＞0.2-0.5	≥155	1
		＞0.5-1.5		2
		＞1.5-3.0		4
	H112	＞6.0-12.5	≥90	9
		＞12.5-40.0	≥85	12
		＞40.0-80.0	≥80	18
